LEAN magnetic pictogram

Magnetic LEAN Pictogram – Visualize your PDCA and 6 SIGMA processes at a glance

The magnetic LEAN pictogram is a visual tool designed to clearly and structuredly represent the different stages of a continuous improvement process, such as PDCA or 6 SIGMA. It facilitates communication between teams, improves process understanding, and supports collective engagement around ongoing LEAN projects.

In an industrial or logistics environment focused on LEAN Management, clear information is essential to ensure effective actions. The magnetic pictogram with colored segments quickly indicates the status of a project or improvement action. Thanks to its tilting segments, the current stage can be highlighted with a simple gesture. This tool promotes the standardization of visual communication in the field, reduces misunderstandings, and reinforces the culture of continuous improvement. Perfectly suited for field teams, it can be installed in seconds on any metal surface: cabinets, whiteboards, machines, or display panels.

Technical Specifications

• Diameter: 200 mm
• Backing: Repositionable, flexible magnetic
• Design: Colored segments to identify each step of the PDCA or 6 SIGMA cycle
• Handling: Tiltable segment to mark the active step
• Compatibility: All metal surfaces (boards, cabinets, machines, etc.)

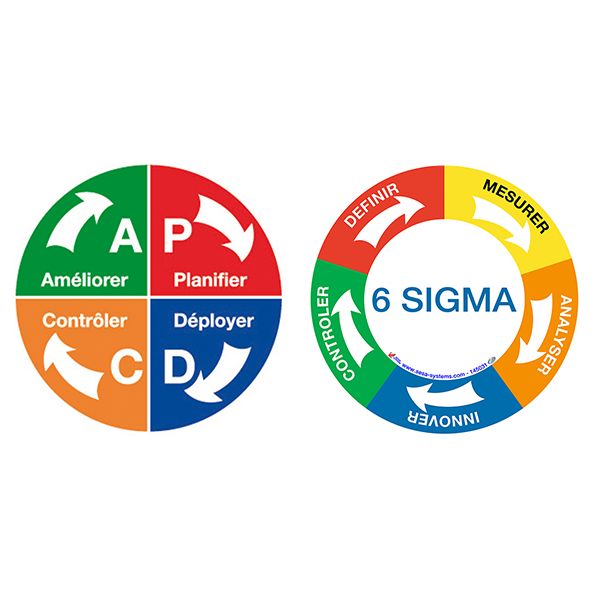

• Available models: PDCA (Plan, Do, Check, Act) and 6 SIGMA (Define, Measure, Analyze, Improve, Control)

What are the benefits for the user?

• Immediate visibility of the status of a continuous improvement project
• Quick installation without drilling or adhesives, repositionable at will
• Visual standardization of LEAN projects in the field
• Team motivation and involvement thanks to clear and shared signage
• Time savings in team meetings or visual steering committees
• Compatible with the LEAN culture, it effectively structures your daily management routines

Communicate clearly with your teams on your LEAN projects thanks to a visual, intuitive, and repositionable tool.
